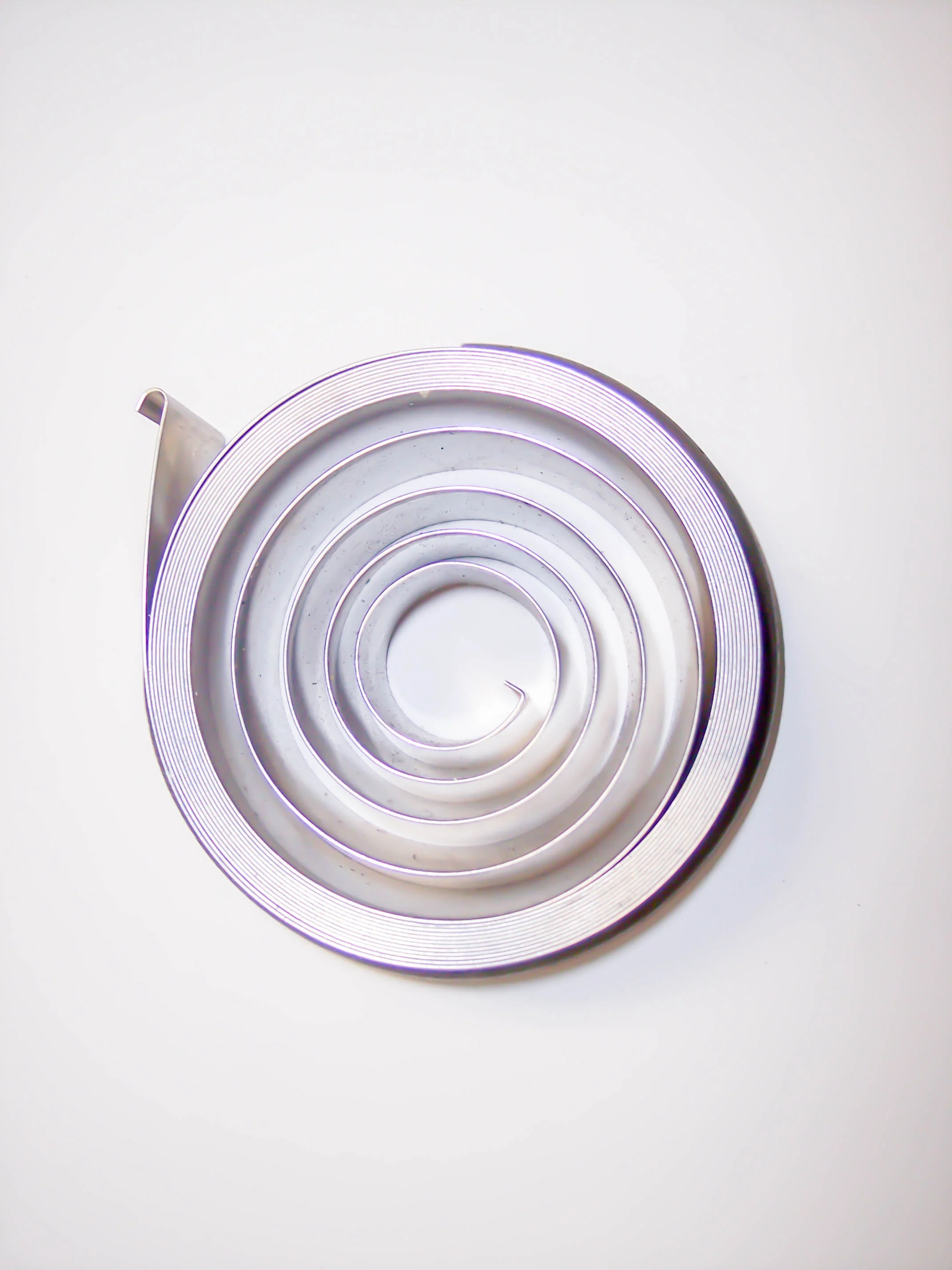

Description:

  • Operates over several revolutions
  • Outside diameter is commonly held fixed by a ring or temporary retainer.  We can manufacture these springs and install them into customer supplied housing.
  • Ends are usually annealed to ease bending for attachment
  • Has no space between outer coils to achieve moderate load with multiple revolutions

Size Ranges:

Most of the springs we make fall into these general guidelines, however, there are always exceptions. Call us with your requirements and we can design a spring to fit your application.

  • From .010” to .062” thick
  • From .125” to 3.000” width

Types of Materials Commonly Used:

  • 1075 or 1095 Tempered Spring Steel
  • High Carbon Spring Steel
  • Stainless Steel – 300 series or 17-7 PH
  • Non-Ferrous Alloys – Beryllium Copper or Phos Bronze

Industries Served:

  • OEM
  • Medical
  • Automotive
  • Aerospace

End Uses:

  • Exercise equipment
  • Temperature control
  • Hose reels
  • Seat belt retractor
  • Electrical cord retractors
  • Dog leads

Tooling:

We have a complete tool room with equipment capabilities to fabricate the tools required for the manufacturing of springs, stampings and wire forms.
